An ultrasonic flowmeter designed for speed and ease.
Meet Cypress.
Cypress is a compact ultrasonic flowmeter with external power and industrial communications designed for long-term flow monitoring and certified for use in C1D2 hazardous areas. It installs on the outside of your pipe—and senses flow through the pipe wall. The Cypress Flowmeter connects with your mobile device or to the SoundWater Flow Computer for displaying measurements.
Whether you’re using your mobile device or the Flow Computer, the setup is easy to follow. Quick, simple installation — 5 minutes from start to finish.
Advantages & Features
Certified for use in C1D2 hazardous areas
Complies with UL 61010-1, UL 121201, CSA C22.2 No 61010-1, CSA C 22.2 No. 213
Long-term flow monitoring
Connects with your SCADA/PLC
SoundWater Reciprocity Architecture
Auto-Adjusting Ultrasonic Power
Mobile App for fast, intuitive setup and use
One-piece construction; no assembly
Gel-free transducers (optional)
Wireless design
“SWT uses an all-in-one design...the on-screen instructions are very easy to follow. 5 minutes from start to finish.”
The Orcas App: Intuitive, Efficient, Accurate
Quick, Accurate Setup
You have almost all setup parameters from pre-loaded, drop-down menus—so you go faster and risk fewer errors.
Bluetooth-Enabled
The Orcas App automatically connects to your Orcas Sensor through your device’s Bluetooth technology.
Always Improving
The Orcas App also lets you provide input and feedback to SoundWater so we can continually enhance its capabilities—and those enhancements arrive regularly on your device via simple App update.
Save and Re-use Location Settings
Ideal for repeated periodic checks.
Accurate
The Orcas App automatically filters flow data, then uses an advanced proprietary signal processing techniques to calculate flow.
English or Metric Measurements
Pre-loaded, input and displayed values in your system of choice.
All-in-One Single Piece Hardware–
Installs on the Outside of Your Pipe
a On-board Electronics
There’s no need for a separate, bulky box or cumbersome wires. Connect 4-20mA, pulse, or MODBUS RTU output to your system.
b Bi-Directional Sensing
Mount once, measure both directions.
c Movable Acoustic Transducers
Mount the sensor once, then fine-tune transducer placement.
d Integrated Ruler
No need to carry a separate measuring tape or rule, making set-up a snap.
Sensor-Mounted Cam Cleats
Mounting the sensor is quick and easy: place, wrap, pull, done.
No Bulky Electronics Box to Lug Around

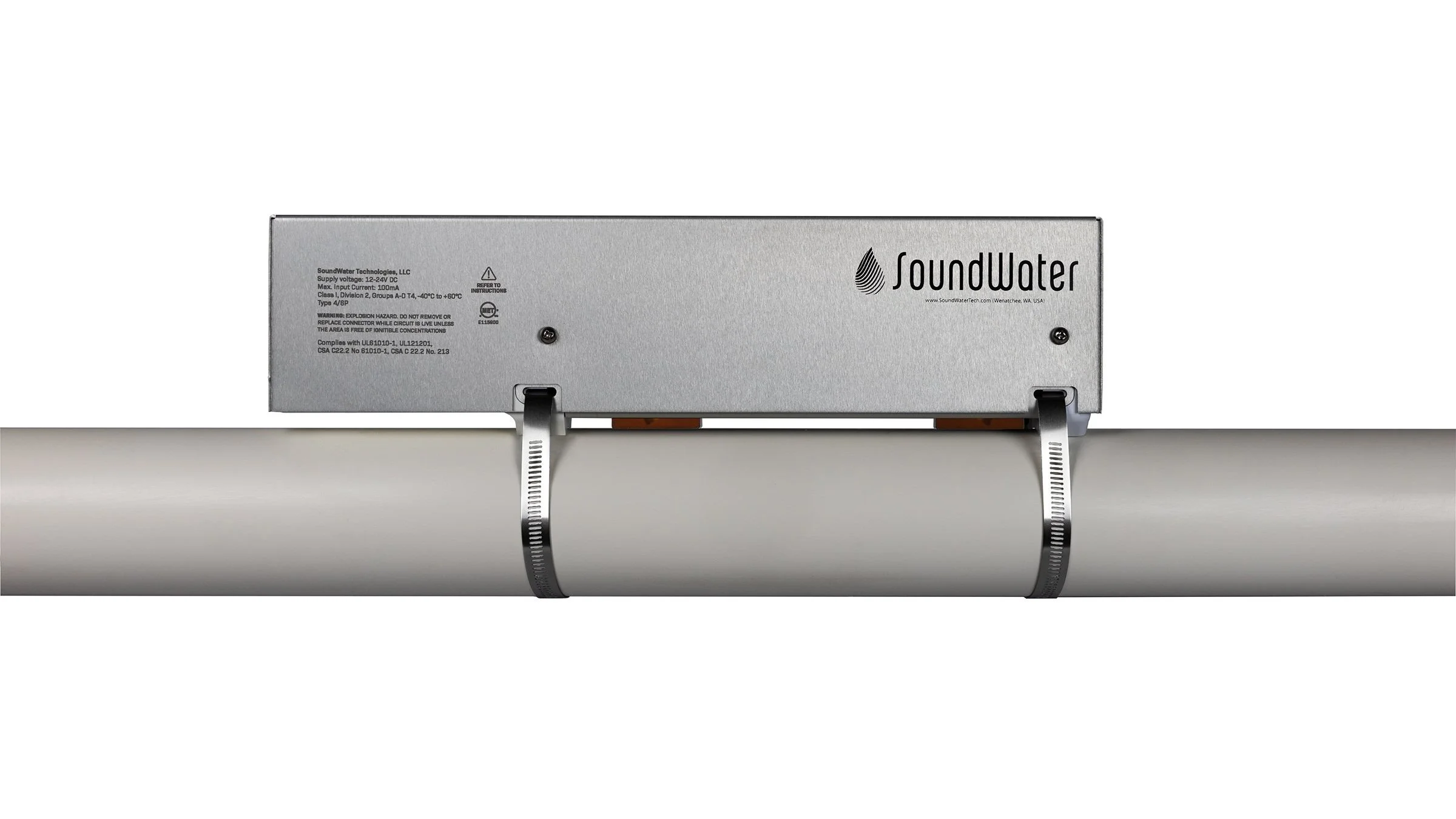

Install on the outside of your pipe and senses through the pipe wall. No need to modify pipes.
Accurate
Measures -60 to 60 ft/s (-20 to 20 m/s). Typically accurate to within 2.0% or less (depending upon pipe size and application).
Rugged
IP65 splash-proof, weather- and corrosion-resistant. Operable in ambient and flow temperatures from -40F to 140 F (-40 to 60).
Bluetooth Connectivity
The Cypress sensor and your mobile device communicate reliably, without wires.
Built-In Data Logging
Conveniently record flow for as long as 365 days or as little as one minute.
Lightweight, Weatherproof Case
Take your Cypress anywhere with confidence and ease.
FCC, RC Approved

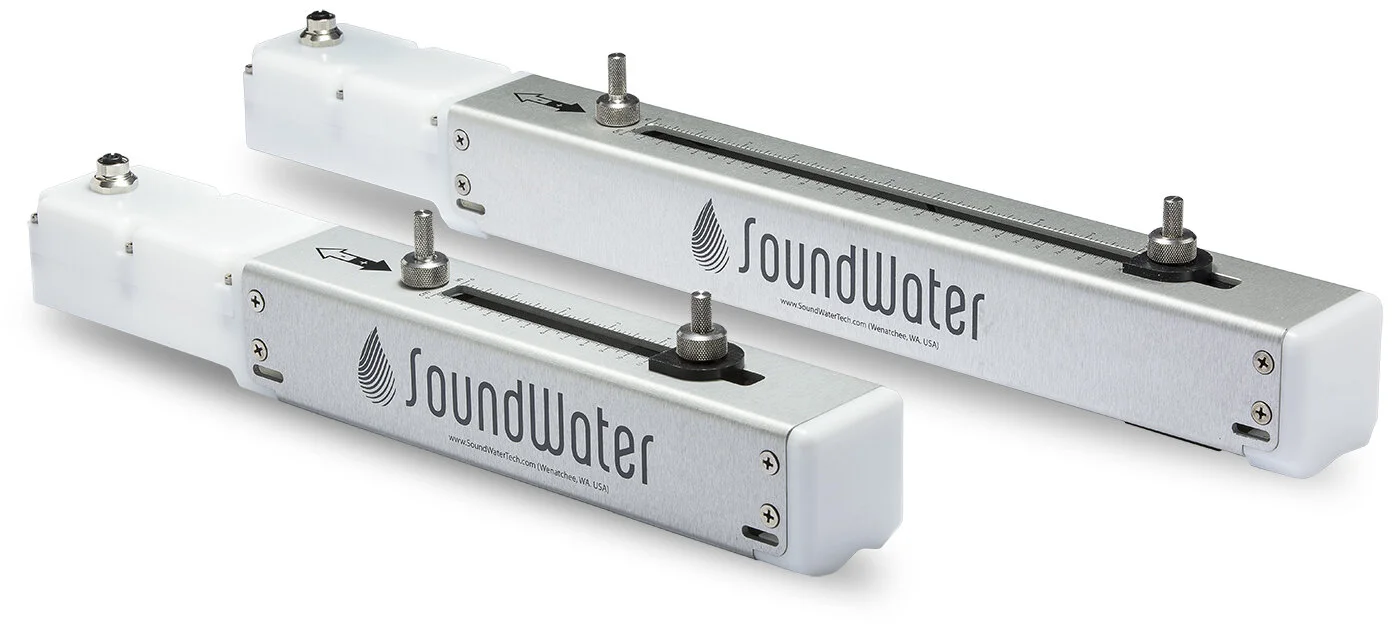

The Cypress Family of Flowmeters
Our family of products comes in a variety of configurations to best fit your application. The Cypress flowmeter measures flow in pipes from 3/4” to 72”. Take a look at our detailed spec sheet or contact us to learn more about the best product for your project.
We also offer two-part designs for high corrosion, large pipes or tight spaces.

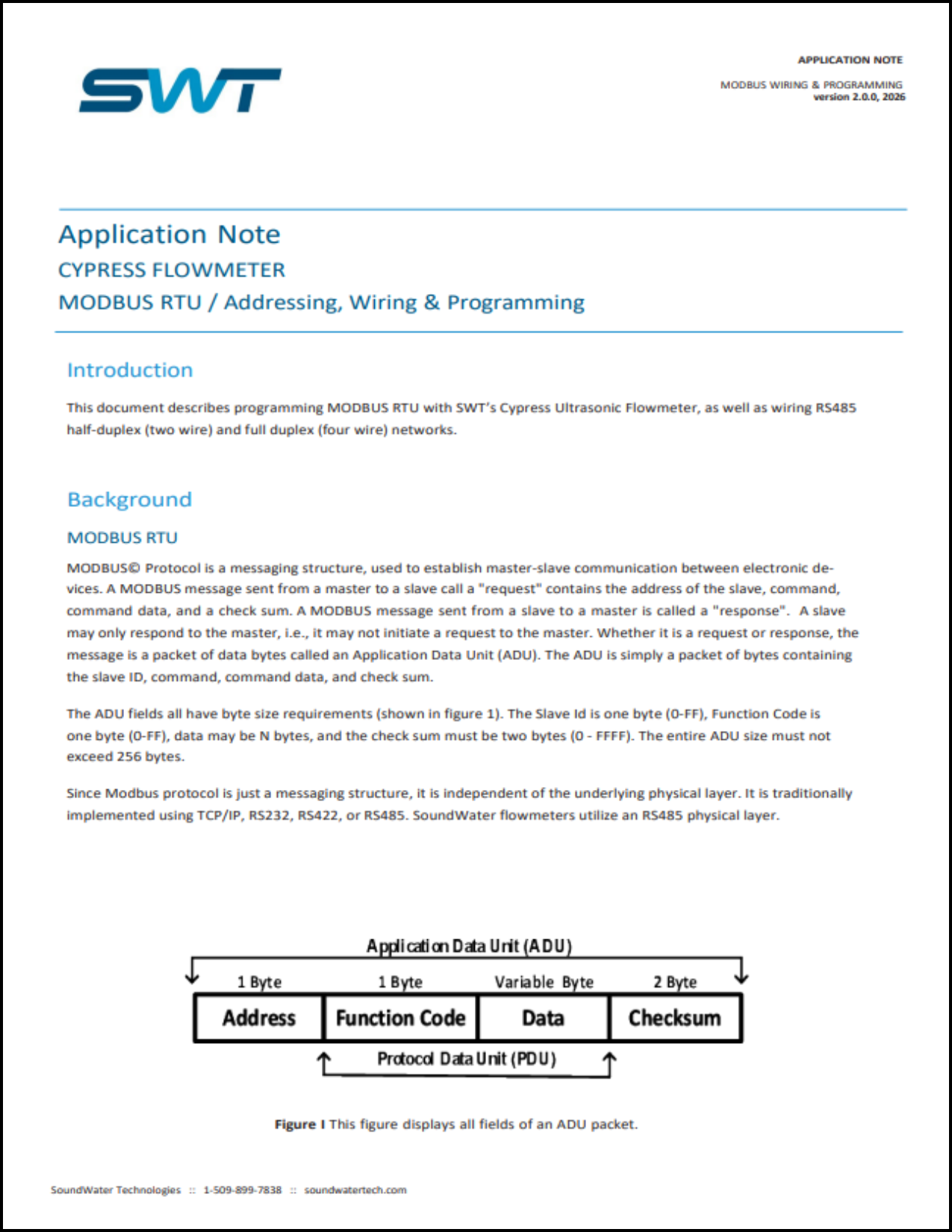

Cypress Documentation
